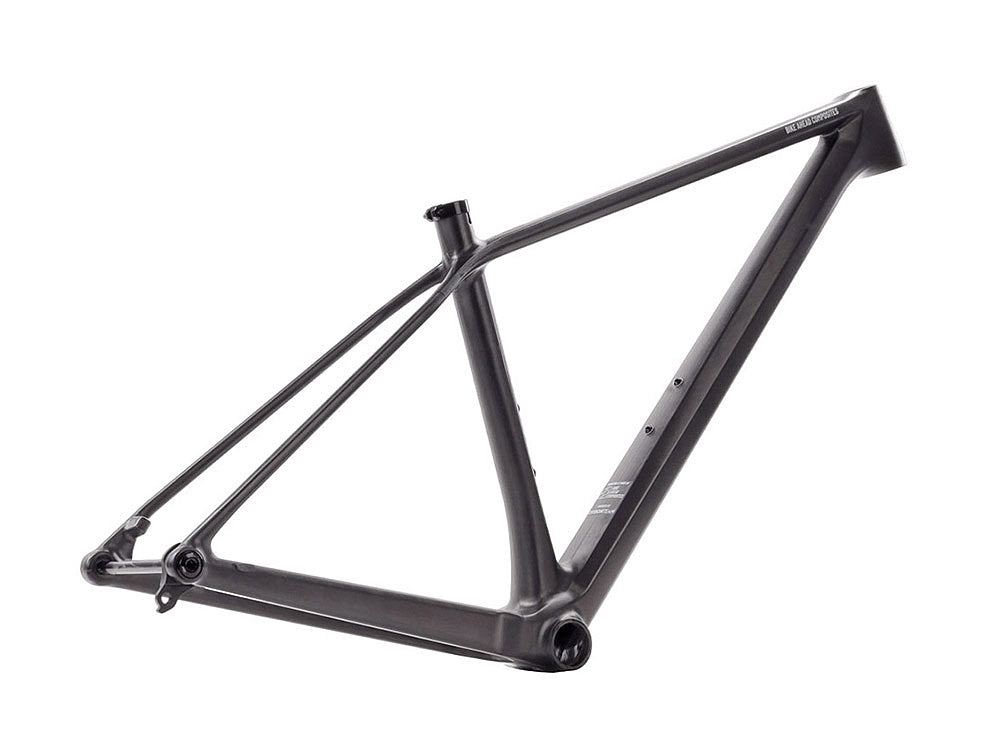

BIKE AHEAD I The frame (770g)

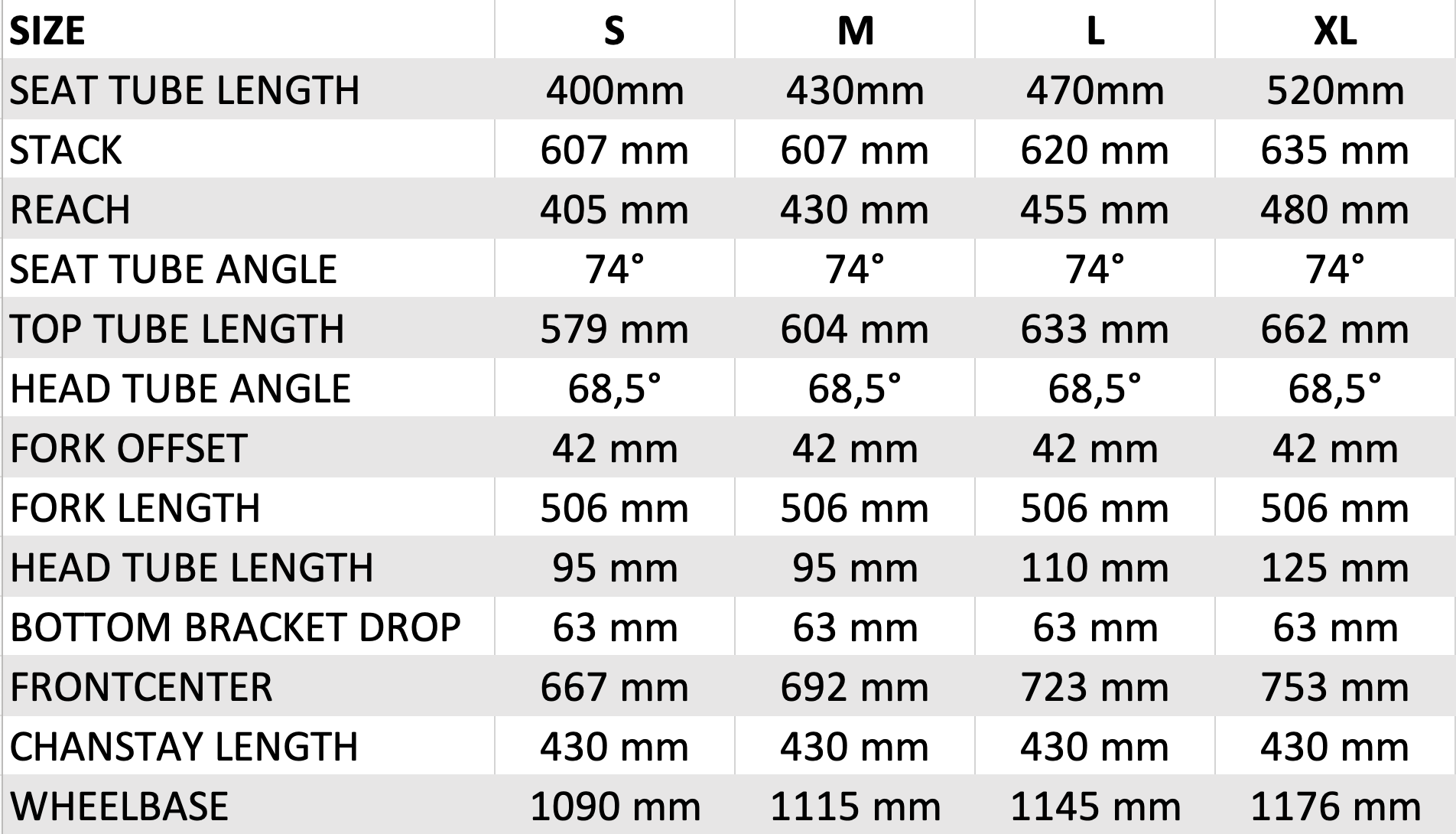

Taglia telaio





I telai Bike Ahead Composites sono prodotti con le tecnologie più moderne, con gli elevati standard dell'Azienda.

Durante la laminazione ogni singolo strato viene controllato e registrato con tecnologie di scansione per assicurare la perfetta adesione e controllo di qualità.

"The Frame" è il primo telaio ufficiale di Bike Ahead Composites, ma l'azienda di Veitshöchheim è attiva da tempo nella lavorazione e laminazione di telai in carbonio di alta gamma e produce già telai per Stoll Bikes e Last. Il risultato è un proiettile da XC leggero, bello, e super veloce!

Il telaio è costituito in mono scocca con una superficie molto uniforme e una disposizione delle pelli estremamente accurata e fine che non ha bisogno di essere nascosta sotto la vernice.Questo permette di risparmiare peso, ma anche mostrare la bellezza del materiale in combinazione con la lavorazione di alta qualità.

Il telaio è già predisposto per il Forcellino deragliatore UDH™ SRAM.

Il passaggio interno dei cavi per il reggisella telescopico è possibile solo in combinazione con il cambio elettronico, poiché viene utilizzata la guida del cavo.

Il peso di 770g a nudo in tg M (840g completo di accessori) ne fa uno dei telai front più leggeri i commercio.

  • Applicazione: Cross Country, Marathon
  • Materiale: Carbonio T800
  • Taglie del telaio: S, M, L, XL
  • Dimensione ruote: 29"
  • Tubo sterzo: 1 1/8" - 1.5" conico
  • Serie sterzo: S.H.I.S. IS42 completamente integrata | IS52
  • Escursione della sospensione anteriore: 100 mm
  • Offset forcella: 44 mm consigliatio
  • Tubo sella (diametro interno): 30,9 mm
  • Tubo sella (diametro esterno): 34,9 mm
  • Inserimento min reggisella: 100 mm
  • Inserimento max reggisella: 170 mm (taglia S) | 200 mm (taglia M) | 240 mm (taglia L) | 290 mm (taglia XL)
  • Movimento centrale: PressFit BB92 (92 x 41 mm)
  • Supporto freno a disco: Postmount 160 mm
  • Dimensione massima consentita disco freno: 180 mm
  • Larghezza massima del pneumatico: 2,4" (60 mm)
  • Sistema di assale posteriore: perno passante 12x148 mm Boost
  • Peso massimo del sistema: 115 kg
  • Passaggio cavi: interno Colori: nero
  • Finitura: Carbonio UD (semilucido) non verniciato
Contenuto della scatola:
  • 1 x Telaio Bike Ahead Composites "The Frame"
  • 2 x tappi per il passaggio dei cavi
  • 1 x forcellino deragliatore SRAM UDH
  • 1 x perno passante | M12 x 1 mm x 176,5 mm
  • 1 x morsetto reggisella INTEND Corona
  • 4 x bulloni per portaborraccia (lega)
